    Default Re: New Tool Tuesday..show some pics

    It ain't Tuesday, but this was too good to wait...

    I found my father now likes to place one of these on the truing stand, beneath the wheel, to provide a reflective surface:


    Of all the options available to him, I've no idea how or why he has found a banana optimal...
    Lawrence Moran

  2. #202
    Join Date
    Aug 2011
    Location
    Willy, VIC
    Posts
    1,639
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    A jig is a tool , right?



    Jig_1


    This is the first version of my jig, designed to be easily mounted and dismounted in a curing oven and to hold alignment while the oven cycles over a temperature range of 100 degrees C.

    The dummy axles and slider are off my Alex Meade chainstay mitring jig. The tube holders were made for me by Todd Farr. I made the BB post by hand with a file from a chunk of 32 x 32 steel bar. The base sheets were laser cut and engraved locally. Most of the rest of it is 8020.

    There are several features that I will change on the next one, particularly the pivots for the tube holder arms. The offset design causes too many difficulties.



    Jig_Dial


    One thing with which I am happy is the angle adjustment design. The pin sets the base angle in integral degrees (only every second is marked to reduce visual clutter). The dial fills in the decimals.

    The pin is a length of M5 threaded rod in SS with part of the threads filled in with System 48 and a knurled M5 insert brazed onto the end as a handle. The wingnut serves to lock the arm in position and to hold it in plane with the angle sheet.


  3. #203
    Join Date
    Sep 2011
    Location
    Middle GA
    Posts
    6,687
    Post Thanks / Like
    Mentioned
    4 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

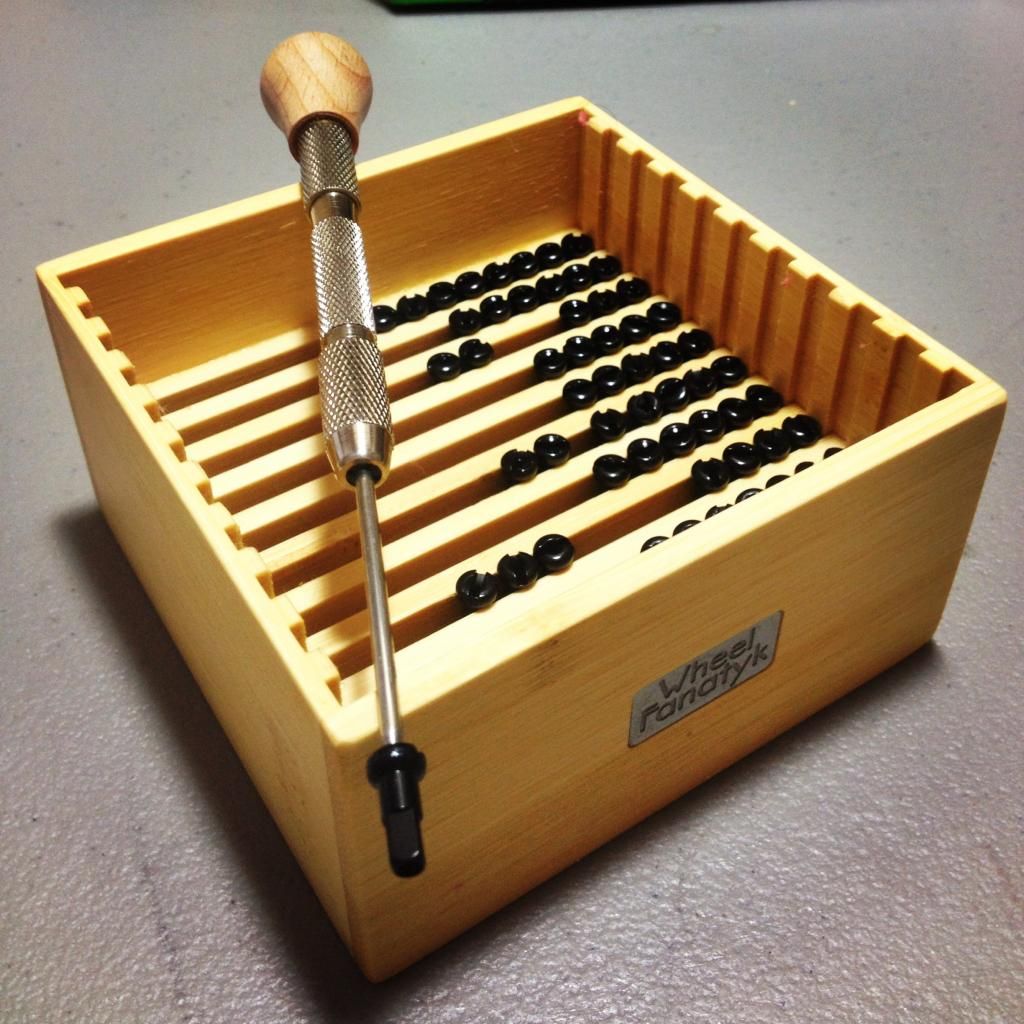

    This little combo right here rocks big time. So simple, but so nice. The Wheel Fanatyk nipple shuffler and driver. I've tried a handful of different nipple drivers (for initial lacing) and this one is BY FAR the best. You can grab a nipple and get it on a spoke quickly and easily, and with only one hand. The driver has a 2degree taper on the end that gives a nice interference fit with the nipple. It holds on tight enough to pick up and thread the nipple onto a spoke, then it just pulls right out. No threads or mechanisms to deal with - push on, pull off. It speeds up the build process a good bit. A bit spendy with shipping (~$50), but highly recommend if you build a decent amount of wheels.

    Dustin Gaddis
    www.MiddleGaEpic.com
    Why do people feel the need to list all of their bikes in their signature?

  4. #204
    Join Date
    May 2008
    Posts
    7,533
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Quote Originally Posted by Mark Kelly View Post
    A jig is a tool , right?
    I think this is technically a fixture, but we'll call it a tool too. Nice job. It's neat you can mount it in an oven.

  5. #205
    Join Date
    Aug 2011
    Location
    Willy, VIC
    Posts
    1,639
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Thanks Jonathan

    To be precise, I can't fit the jig in my oven until I rebuild the oven - dumbarse here made it too small.


  6. #206
    Join Date
    May 2009
    Posts
    5,057
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Quote Originally Posted by dgaddis View Post
    This little combo right here rocks big time. So simple, but so nice. The Wheel Fanatyk nipple shuffler and driver. I've tried a handful of different nipple drivers (for initial lacing) and this one is BY FAR the best. You can grab a nipple and get it on a spoke quickly and easily, and with only one hand. The driver has a 2degree taper on the end that gives a nice interference fit with the nipple. It holds on tight enough to pick up and thread the nipple onto a spoke, then it just pulls right out. No threads or mechanisms to deal with - push on, pull off. It speeds up the build process a good bit. A bit spendy with shipping (~$50), but highly recommend if you build a decent amount of wheels.

    The box is badass. Wish I could just buy that.

    I made this little thing after using the EVT version and thinking it was awesomely handy.



  7. #207
    Join Date
    Aug 2013
    Location
    Columbus, Ohio, United States
    Posts
    539
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Quote Originally Posted by Mark Kelly View Post
    A jig is a tool , right?



    Jig_Dial


    One thing with which I am happy is the angle adjustment design. The pin sets the base angle in integral degrees (only every second is marked to reduce visual clutter). The dial fills in the decimals.

    The pin is a length of M5 threaded rod in SS with part of the threads filled in with System 48 and a knurled M5 insert brazed onto the end as a handle. The wingnut serves to lock the arm in position and to hold it in plane with the angle sheet.
    That is extremely cool. Did you think up that adjuster design specifically for this? Simple and clever.
    Zuzu’s pedals

  8. #208
    Join Date
    Feb 2013
    Location
    London, UK
    Posts
    4,430
    Post Thanks / Like
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Quote Originally Posted by Mark Kelly View Post
    A jig is a tool , right?
    ...
    One thing with which I am happy is the angle adjustment design. The pin sets the base angle in integral degrees (only every second is marked to reduce visual clutter). The dial fills in the decimals.

    The pin is a length of M5 threaded rod in SS with part of the threads filled in with System 48 and a knurled M5 insert brazed onto the end as a handle. The wingnut serves to lock the arm in position and to hold it in plane with the angle sheet.
    That is a very clever and neat solution
    Andrea "Gattonero" Cattolico, head mechanic @Condor Cycles London


    "Caron, non ti crucciare:
    vuolsi così colà dove si puote
    ciò che si vuole, e più non dimandare"

  9. #209
    Join Date
    Aug 2011
    Location
    Willy, VIC
    Posts
    1,639
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Quote Originally Posted by Jeffrey Borisch View Post
    Did you think up that adjuster design specifically for this? Simple and clever.
    Yep, I was originally going to use a vernier but I'm finding them harder to read as I get older.

    It would be cleverer if I'd got the other side of the disc engraved since it would then turn clockwise to increase the angle, as is the standard in the western world.


  10. #210
    Join Date
    Aug 2011
    Location
    Willy, VIC
    Posts
    1,639
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Quote Originally Posted by Gattonero View Post
    That is a very clever and neat solution
    Thanks Andrea.

    BTW to all: once I've ironed the bugs out, I will offer this design as freeware to salonistas. I'll put the source files on a host somewhere, any salonista can download them and get the parts made locally.

    My local laser cutter only charged me $150 (material included). The other parts will cost you $400 or so.


  11. #211
    Join Date
    Apr 2009
    Posts
    2,031
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Quote Originally Posted by Mark Kelly View Post
    Yep, I was originally going to use a vernier but I'm finding them harder to read as I get older. It would be cleverer if I'd got the other side of the disc engraved since it would then turn clockwise to increase the angle, as is the standard in the western world.
    snail cam they they are available pre indexed on their edge to lock em in place so many degrees equals so many mm of tanslation Then someone added teeth and a worm on their edge before toolmakers figured it was easier to just use afine thread into a brass pivot


  12. #212
    Join Date
    Aug 2011
    Location
    Willy, VIC
    Posts
    1,639
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Quote Originally Posted by Mike Mcdermid View Post
    snail cam they they are available pre indexed on their edge to lock em in place so many degrees equals so many mm of tanslation Then someone added teeth and a worm on their edge before toolmakers figured it was easier to just use afine thread into a brass pivot
    Mike

    Yes, I looked at those but they were either far more expensive (worm gear) or seemed a bit clunky (the threaded pivot needs a second sliding plate).

    This was the simplest and cheapest solution I could think of.

    BTW I'm not claiming it's original, almost nothing is.


  13. #213
    Join Date
    Apr 2009
    Posts
    2,031
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Quote Originally Posted by Mark Kelly View Post
    Mike

    Yes, I looked at those but they were either far more expensive (worm gear) or seemed a bit clunky (the threaded pivot needs a second sliding plate).

    This was the simplest and cheapest solution I could think of.

    BTW I'm not claiming it's original, almost nothing is.
    Mark just wasnt sure if you knew you could buy em , might have made the job easier


  14. #214
    Join Date
    Oct 2009
    Posts
    1,735
    Post Thanks / Like
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    After years of ghetto solutions decided to add a little bearing press, drifts and some extractors. Picked up the low end Wheels Manufacturing unit and a couple drifts. Figure I'll add drifts / extractors one at a time as needed for different hubs.

    Not too exciting, but home shop and all that.

    -Mark


  15. #215
    Join Date
    Apr 2009
    Posts
    2,031
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    one of the tools of the trade


    delivered monday


  16. #216
    Join Date
    Feb 2013
    Location
    London, UK
    Posts
    4,430
    Post Thanks / Like
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Not really a "tool", but makes you look like one. LOL

    Pure PVC race mechanic cape, "Clement - Gruppo Pirelli" branded on the back (?). I guess its main use is to lose weight, see the 2nd picture I'm already suffering those 30 seconds I have it on


    oh, man...
    Andrea "Gattonero" Cattolico, head mechanic @Condor Cycles London


    "Caron, non ti crucciare:
    vuolsi così colà dove si puote
    ciò che si vuole, e più non dimandare"

  17. #217
    Join Date
    Dec 2009
    Location
    BendOR
    Posts
    2,130
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    Must be a euro thing. I've been doing race work for 7 years now and have yet to see somebody wear something that silly.

  18. #218
    Join Date
    Feb 2013
    Location
    London, UK
    Posts
    4,430
    Post Thanks / Like
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    In fact, this cape still has that distinctive smell of a PVC foil being left folded in a bag for 20 years...
    Andrea "Gattonero" Cattolico, head mechanic @Condor Cycles London


    "Caron, non ti crucciare:
    vuolsi così colà dove si puote
    ciò che si vuole, e più non dimandare"

  19. #219
    Join Date
    Dec 2009
    Location
    BendOR
    Posts
    2,130
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics


    Scored this monster over the weekend. Time to stop screwing around while I wait for my pile o craftsmen to build pressure again. It was getting to be a bit of a problem having two people in the shop.

  20. #220
    Join Date
    Oct 2009
    Posts
    1,735
    Post Thanks / Like
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)

    Default Re: New Tool Tuesday..show some pics

    "You cannot borrow this tool" --> Jason (Abbey Bike Tools Jason, not the other seventeen Jason's.....), how do normal people get one of those with the "hands off" logo?

    Scroll down a pic or two: Tour de France tech: Pro mechanics' tools | Cyclingnews.com
